Parallel Z and A axes

Control Software Manual for Servo Systems

All Software Manuals | Table of Contents (servo)

In order to set up parallel Z & A axes with their respective end effectors (e.g. spindle and drill bank), follow the steps below:

Open the interface.
Go to Setup -> System.
Enter the correct scale factor for M4.
Disable the rotary and lathe options.

This will enable the Touch Off A Zero Position in the Toolchanger Operation window.

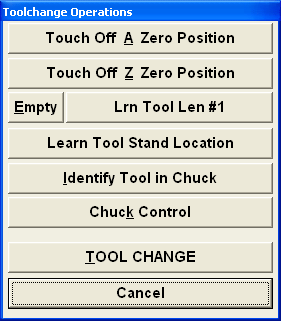

Toolchange operations windo.gif

NOTE: Within Setup -> Advanced -> Software Switches, we can check A Pause Retract Relative. This will retract the A axis every time the system is paused while running a file.
