These examples were written in SAC. To run an example, copy the code and paste it into a file called "example.sac". Press File in the Control Software to load the file, and Run to execute it. In the two examples that loop, pressing the Estop will disable the machine and cause the SAC script to exit.

Contents

Gcode and Offsets Example

This example shows how to load an offset from the Offsets table in the Control Software, and run a gcode file.

'-------------------Home Machine---------------
Home "Z"
Home "X"
Home "Y"

'----------------Load Origin 1----------------------
retrieveorigin 1

'-------Set spindle,Set Speed&Accel. Move to Offset.-----------
routerauto
accel 25
speed 800
moveto 0,0

'------------------Load File------------------
gcodefile("c:\filelocation\filename1.ncd")
gcodepreprocess
gcoderun

'------------------Load Offset2------------------
retrieveorigin 2

'------------------Load File------------------
gcodefile("c:\filelocation\filename2.ncd)
gcodepreprocess
gcoderun

routeroff


Input/Output Checking Example

This example will check the status of input 14, and will exit when the input goes high.

IOOUT "0","1"
DELAY 2
IOOUT "0","0"

MESSAGE "Waiting for input..."
DO
	' Check the status of input 14 ("Input 6" in Diagnostics)

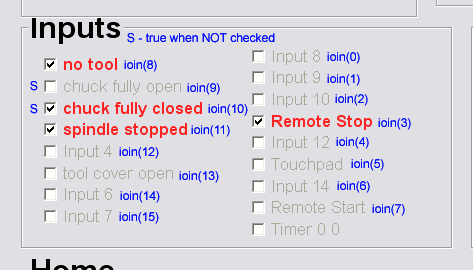

	' See sac_diagnostics.gif below for a handy diagram.
	IF IOIN(14) = TRUE THEN
		EXIT DO
	END IF

	' Check to make sure the machine is enabled
	if active() = false then
		exit do
	end if
LOOP

Sac diagnostics.gif


Properly read the pause button example

This code implements the pause button during moving. It also debounces the pause button which is usually necessary.

dim xpos
dim ypos
dim zpos
dim moving 'moving... 0=no, 1=yes, 2=paused
dim startswitch
dim pauseswitch
dim killflag
dim machinepaused

mainprogram()

public function mainprogram()
  startswitch=7
  pauseswitch=3

  xpos=10
  ypos=10

  speed(100)
  accel(5)

  SMOVETO xpos,ypos
  moving = 1

  WHILE (NOT COMPLETEDMOVE)

    CALL checkpause

  WEND

  moving = 0

end function 'this is the end of the small program. Anything below this is a check function.

public function checkpause()
dim incr

for incr=0 to 20

	IF IOIN(pauseswitch)=FALSE THEN
		'MACHINE IS PAUSED
	ELSE
		machinepaused=FALSE
		EXIT FUNCTION
	END IF

next 'incr

machinepaused=TRUE

paused()

end function


public function paused()
dim incr


  halt "YXZ",false
  moving=2
  messagetop "Paused",2
  do
    IF IOIN (startswitch) = TRUE THEN
      incr=incr+1
    else
      incr=0
    end if

    if incr>20 then
      unpause()
      exit do
    END IF

  loop

end function

public function unpause()

  messagetop "Unpaused",2
  machinepaused=FALSE
  if moving=2 then

    SMOVETO xpos,ypos
    moving=1
  end if

end function

Input/Output With G-Code File Execution

This example is a bit more involved. It runs a gcode file every time the Pause button has been pressed. It also turns on and off an output, and writes a message to the interface.

' This example loads a gcode file
' and runs it every time the user
' presses the Pause button on the
' remote start/stop box.
'
' Any digital input would work, to
' start the program. We use Pause
' because it's convinent.
'
' Zero the machine where you want
' the gcode to start. Press the
' e-stop to exit the software.
' Remember to re-enable the machine
' before attempting to re-run the
' script. To do so, jog the machine
' and answer Yes to re-enable.
'


' Loads the gcode file
gcodefile "C:\Program Files\Techno CNC Interface v1.421\examples\2box.nc"

' Preprocesses the gcode file
gcodepreprocess

' Loop until the user presses the e-stop.
do

  messagetop "Waiting for Pause press...", 2

  do

    ' Waits for the pause button to be pressed on the
    ' remote box. The pause button is normally closed,
    ' so we have to read "false" to see a press.
    if ioin(3) = false then
      exit do
    end if

    ' Check to make sure the machine is enabled. Pressing
    ' the e-stop will disable the machine, exiting this loop.
    if active() = false then
      exit do
    end if

  loop

  ' Check to make sure the machine is enabled. Pressing
  ' the e-stop will disable the machine, exiting this loop.
  if active() = false then
    exit do
  end if

  messagetop "Running gcode...", 2

  ' Run the gcode file loaded at the start of this script.
  gcoderun

  messagetop "Turning on output 1...", 2

  ' Turns out 1 ON
  ioout "1","1"

  ' Waits 2 Seconds
  Delay 2

  ' Turns out 1 OFF
  ioout "1","0"

loop


Toggling an output while moving without stopping

This example shows how to toggle an output during a move without the move slowing down.

SMOVETO 10

DO

IF POS("X")>2 THEN

	IOOUT "0","1"
	MESSAGETOP "OUTPUT 0 ON","2"
	EXIT DO

END IF

IF ACTIVE=FALSE THEN EXIT DO

LOOP

DO

IF POS("X")>8 THEN

	IOOUT "0","0"
	MESSAGETOP "OUTPUT 0 OFF","2"
	EXIT DO

END IF

IF ACTIVE=FALSE THEN EXIT DO

LOOP

DO

	IF COMPLETEDMOVE()=TRUE THEN EXIT DO

LOOP
