The controller mainboard is the router or lathe control electronic system.

Low Power Board

Item Part Number
Low Power Board H27T17-SRVCTRL3
Short PCI card H20T43-PCINT-002
Click to view larger.

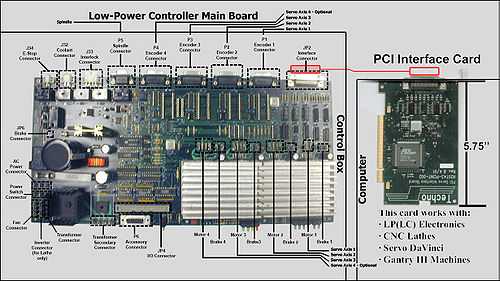

Consult LC Servo Controller connector pinouts for details. You can also download and reference the LC and Lathe Board with Callouts (pdf).

High Power Board

Item Part Number
High Power Board
Long PCI card H20T43-PCI403
Click to view larger.

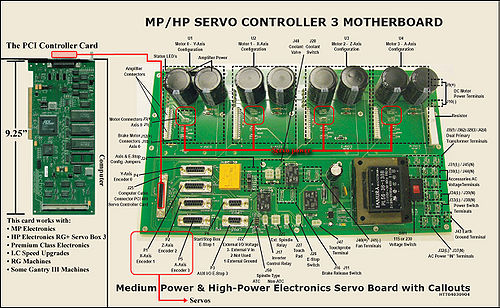

MP/HP Servo Controller 3 Reference Sheet (pdf)
